Jinan Dexian Machinery Co.,Ltd

DX- 1290 CNC Laser Cutting Mahine

See Larger Picture : DX- 1290 CNC Laser Cutting Mahine

Contact Now* Send an Inquiry to this supplier.
  • Share to :
  • Pinterest

Browse by Category

Contact us

Jinan Dexian Machinery Co.,Ltd
[China]

Address
Lashan Indutrail Park,jinan city,china Jinan Shandong
Phone
86-0531-55501593
Contact name
emma

Quick Information

  • Brand Name: DX TECH
  • Place of Origin: China
  • Model Number : DX- 1290

Description

Detailed Product Description


DX- 1290 cnc laser cutting mahine
1.suportting XP/Vista/Win7.
2.220V/110V,USB2.0/3.0.
3.80W/100W.
4.Video teachin

samplesDX- 1290 cnc laser cutting mahine with best price and 1200mm*900mm(47.2inch*35.4inch)

passed CE FDA ISO.


We are Professional Large-scale Manufacturer, have more than 12 years producing experience. We have built professional after-sale service team, offer one year guarantee for free for orversea customers.



 DX-L1290 cnc laser cutting mahine Materials

Applicable

Lether, cloth, wool, fur, acrylic,plexiglass, wooden board, plastic, resin, and other non-metal materials

Applicable Industry

Processing Industries of large-scale engraving and cutting, such as garment, leather, clipping, cutting of template, package and printing, advertisement, decoration, building upholster, art gift, computer embroidery, paper product, acrylic product, MDF ect, non-metal sheet precision cutting and other industries.

Technical Parameters

Laser Power

80W (100W is optional)

Laser Type

Hermetic CO2 glass tube

Power Supply

AC220±10%  50HZ / AC110±10%  60HZ

Working Area

1200*900mm

Max Moving Speed

0-25000mm/min

Worktable

honeycomb worktable/aluminium knife/steel nail(optional)

Locating Precision

<0.01mm

Min Shaping Character

Character 3×3mm  Letter:2×2mm

Operating Temperature

5°C-35°C

Resolution ratio

≤4500dpi

Control Configuration

DSP

Data transfer Interface

USB2.0(offline)

System Environment

WINDOWS 2000/ WINDOWS XP/Visa/win7

Cooling Way

Water Cooling and Protection System

Graphic Format Supported

files which CorelDraw,Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF,PAT,CDT,etc.)

Compatible Software

CorelDraw, AutoCAD

Cutting Thickness

0–20mm(depends on different material)

Color Separation

Separation of cutting up to 256 colors

Sloping Engraving

Yes,slope can be designed discretionarily

Cuts off the water supply

the protection

Yes

Packing

plywood case or according to customer’s request

Net Weight/Gross Weight

380/430kg

Machine Dimension

1980*1300*1120mm

Package Dimension

2100*1700*1300mm

Optional parts

High-grade cooling system/imported focus lens/double head/cylinder rotary attachment/irregular rotary attachment

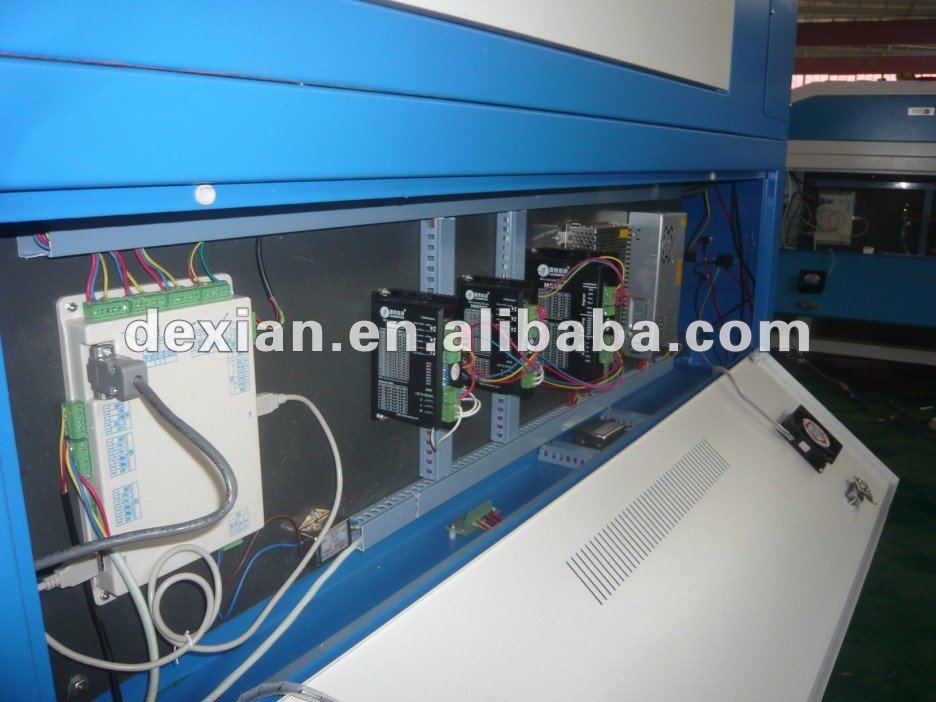

 DX-L1290 cnc laser cutting mahine parts:

1290mini back.jpg



DX-L1290 cnc laser cutting mahine  samples:

3989glasseagle.jpg3989Harley.jpgEngraved Wedding Stationary.jpg


Packaging & Delivery

  • Minimum Order : 1 set
  • Supply Ability : 100 sets
